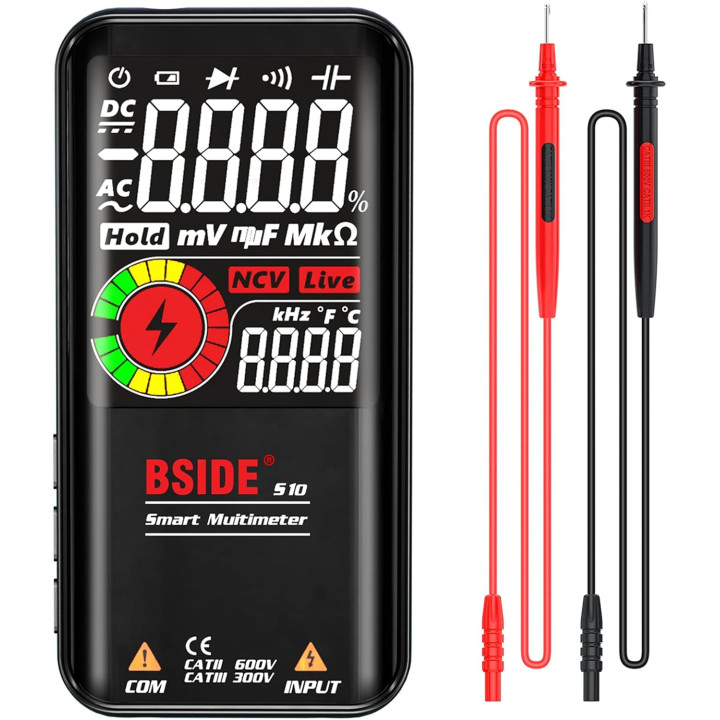

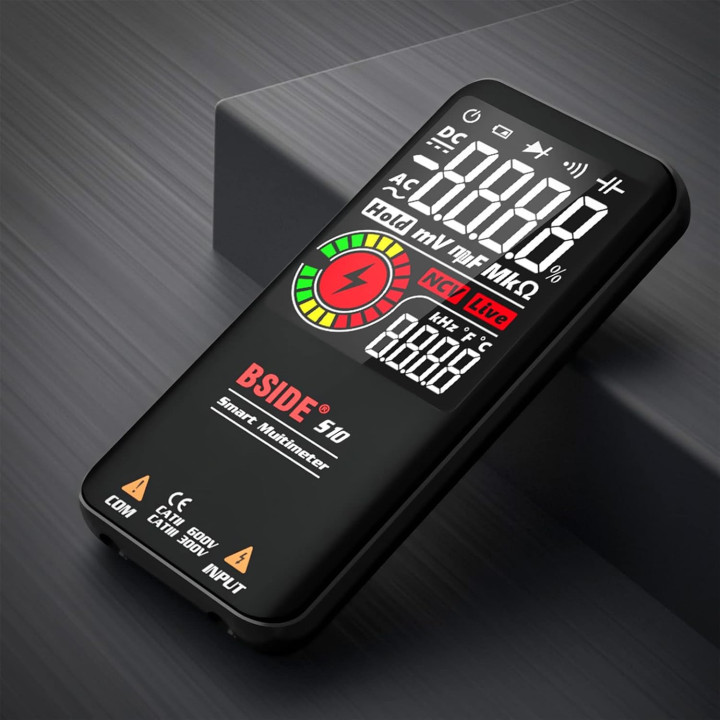

BSIDE S10 Digital Smart Multimeter

Overview:
The BSIDE S10 Digital Smart Multimeter is a compact and intelligent measuring tool designed for easy and fast electrical testing. It features automatic mode detection and auto-ranging, allowing users to measure voltage, resistance, capacitance, and frequency without manual range selection. Equipped with a color LCD display and non-contact voltage (NCV) detection, it provides safe and reliable operation for home users, technicians, and electronics hobbyists.
Please note: This model does not support current (A/mA/µA) measurement.

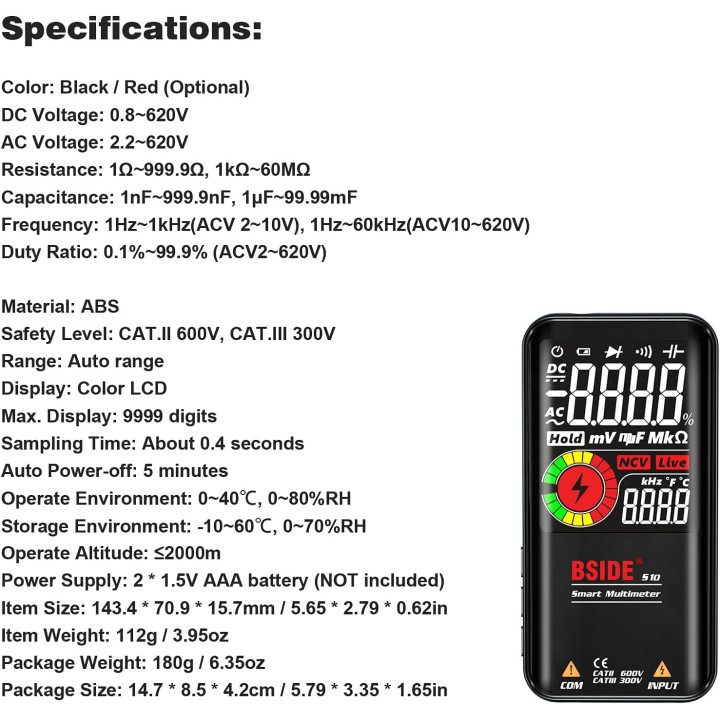

Specifications:

• Model: BSIDE S10

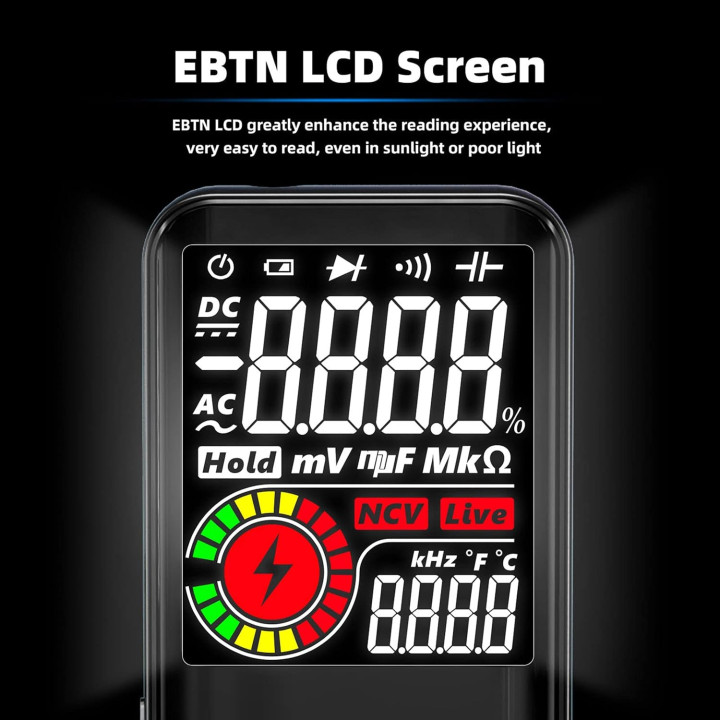

• Display Type: Color LCD

• Max Display: 9999 Digits

• Range Type: Auto Range

• DC Voltage: 0.8V – 620V

• AC Voltage: 2.2V – 620V

• Resistance: 1Ω – 999.9Ω, 1kΩ – 60MΩ

• Capacitance: 1nF – 999.9nF, 1µF – 99.99mF

• Frequency:

  • 1Hz – 1kHz (ACV 2–10V)

  • 1Hz – 60kHz (ACV 10–620V)

• Duty Cycle: 0.1% – 99.9% (ACV 2–620V)

• NCV: Supported (Live Wire Detection)

• Material: ABS Plastic

• Safety Rating: CAT II 600V, CAT III 300V

• Sampling Time: Approx. 0.4s

• Auto Power Off: 5 Minutes

• Power Supply: 2 × AAA 1.5V Batteries

• Operating Temperature: 0°C – 40°C

• Storage Temperature: -10°C – 60°C

• Operating Humidity: 0% – 80% RH

• Dimensions: 143.4 × 70.9 × 15.7 mm

• Weight: 112g

Applications:
Electrical maintenance, home wiring inspection, appliance testing, voltage checking, circuit troubleshooting, DIY electronics, and educational projects.
