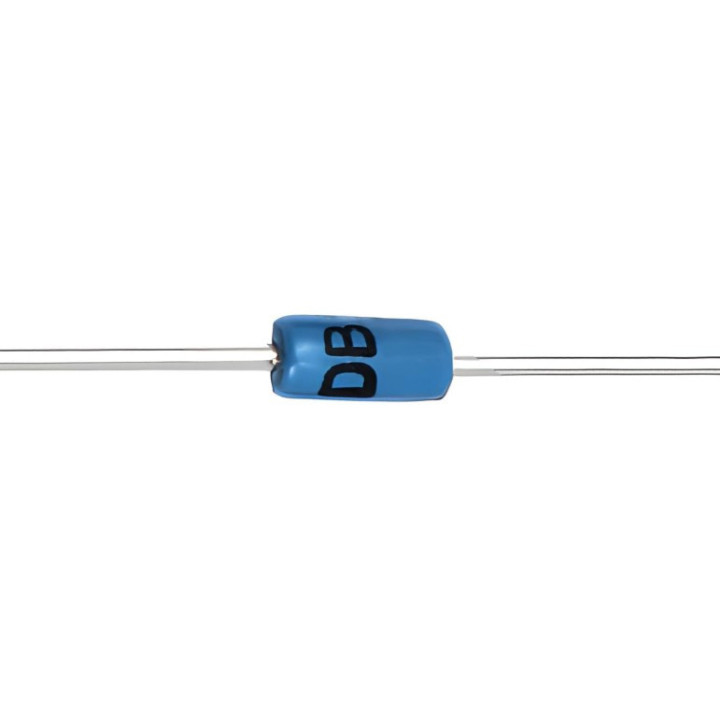

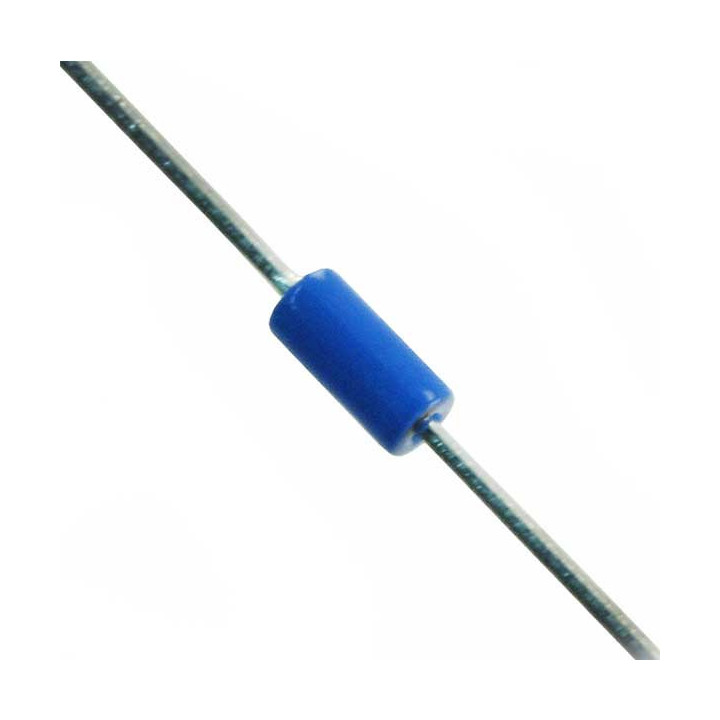

DB3 Diac 28V-36V

JOD0.25
No tax

DB3 DIAC trigger diode with 28V–36V breakover voltage. Ideal for TRIAC triggering and AC dimmer circuits.

Overview:
The DB3 DIAC is a bidirectional trigger diode used mainly in AC phase control circuits. It provides stable and symmetrical breakover voltage, making it ideal for triggering TRIACs in dimmer, motor speed control, and power regulation applications. Its compact design ensures reliable operation in high-voltage AC circuits.

Specifications:

  • Model: DB3

  • Component Type: DIAC (Bidirectional Trigger Diode)

  • Breakover Voltage: 28V – 36V

  • Maximum Current: 2A (pulse)

  • Package: DO-35

  • Polarity: Bidirectional

  • Operating Temperature: -40°C to +125°C

  • Power Dissipation: ~150 mW

  • Applications: Light dimmers, fan regulators, motor controllers, TRIAC triggering, AC power control
