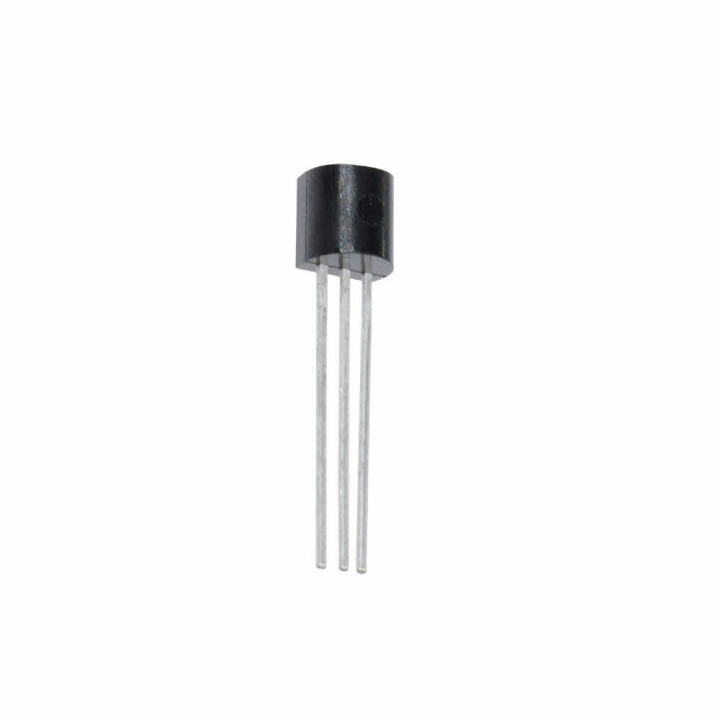

DS18B20 Temp Sensor (TO-92)

JOD1.00
No tax

DS18B20 digital temperature sensor in TO-92 package for precise temperature measurement. Ideal for embedded systems and microcontroller projects.

Overview:
The DS18B20 Temperature Sensor (TO-92) is a compact digital sensor that provides accurate temperature readings using the 1-Wire protocol. It features a unique 64-bit address, enabling multiple sensors to operate on the same bus. Its small size and low power consumption make it perfect for embedded and DIY electronics projects.

Specifications:

  • Model: DS18B20 (TO-92)

  • Sensor Type: Digital Temperature Sensor

  • Package: TO-92

  • Interface: 1-Wire

  • Supply Voltage: 3.0V – 5.5V DC

  • Temperature Range: -55°C to +125°C

  • Accuracy: ±0.5°C (from -10°C to +85°C)

  • Unique ID: 64-bit ROM Code

  • Applications: Temperature monitoring, embedded systems, thermostats, data loggers, Arduino projects, Raspberry Pi projects
