Arduino CNC Shield V3.0

JOD3.00
No tax

Arduino CNC Shield V3.0 for controlling stepper motors in CNC machines, laser engravers, and 3D printers. Designed for use with Arduino UNO.

Overview:

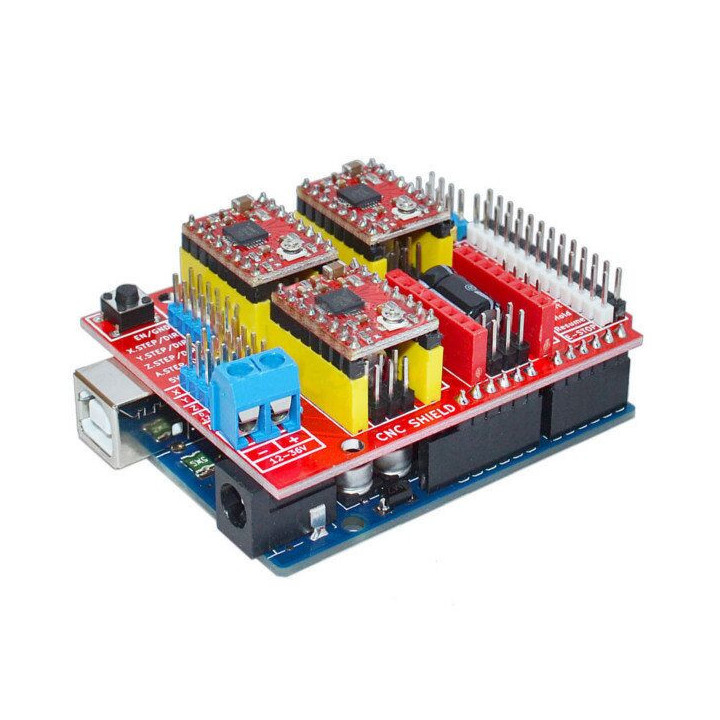

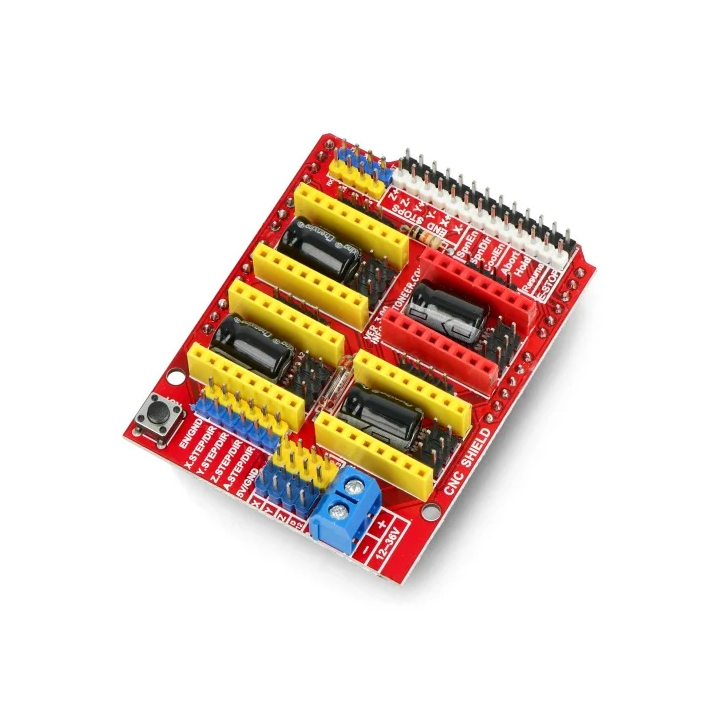

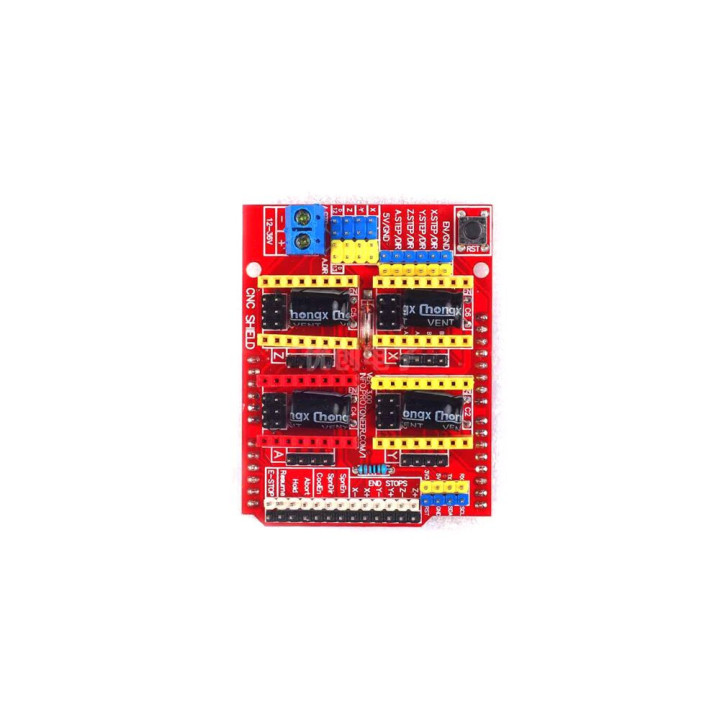

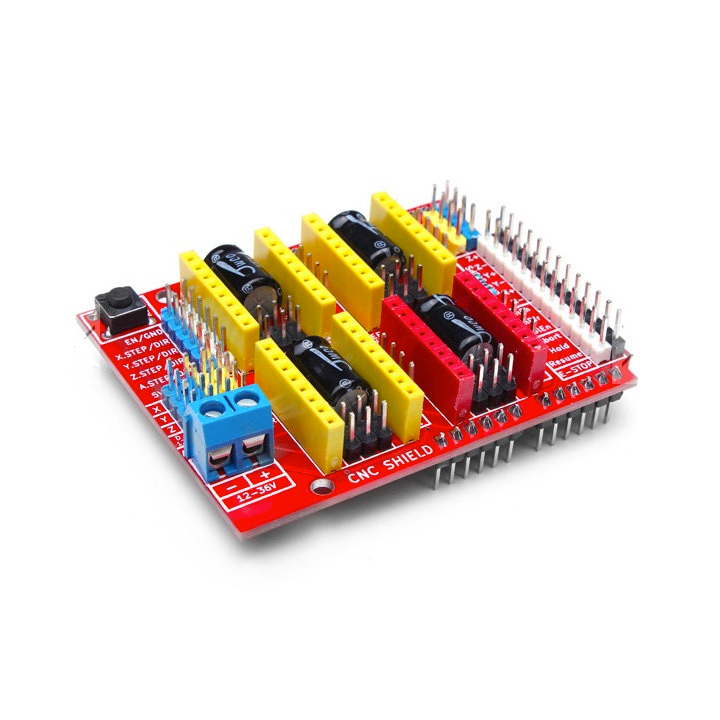

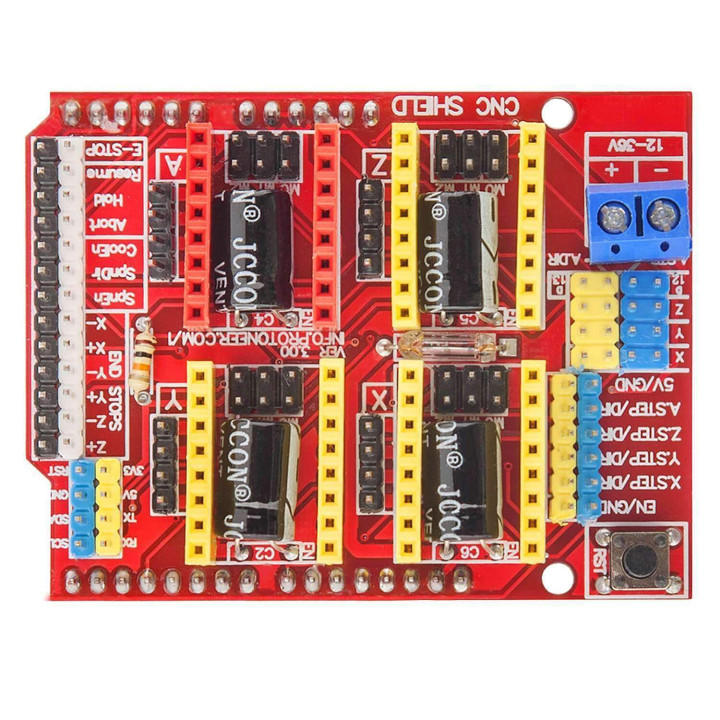

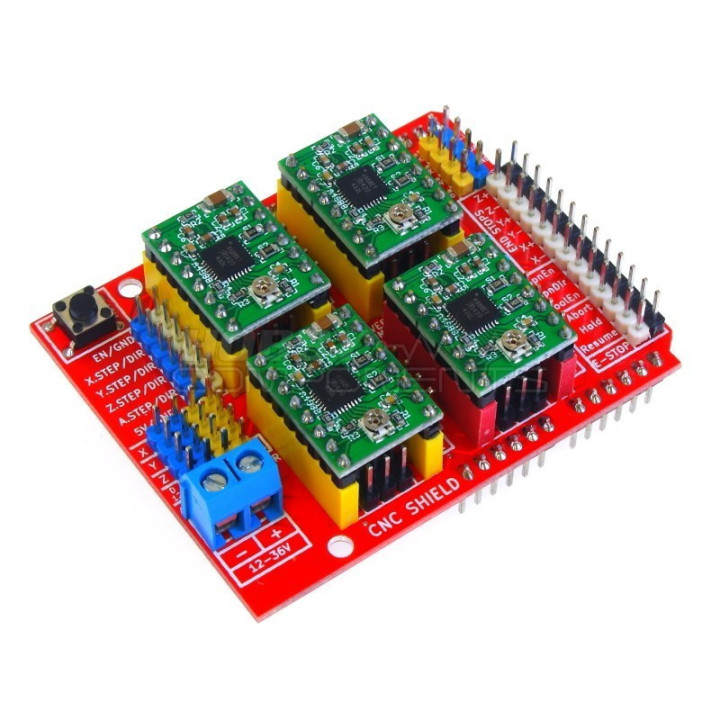

The Arduino CNC Shield V3.0 is an expansion board designed to simplify the control of CNC machines and motion-based projects. It mounts directly onto an Arduino UNO and supports up to four stepper motor drivers, allowing precise control of multiple axes. The shield is compatible with popular drivers such as A4988 and DRV8825 and works seamlessly with GRBL firmware.

Specifications:

  • Version: V3.0

  • Compatible Board: Arduino UNO

  • Supported Drivers: A4988, DRV8825 (plug-in type)

  • Motor Support: Up to 4 stepper motors (X, Y, Z, A)

  • Microstepping: Supported (via driver modules)

  • Power Supply: External motor power input

  • Interface: Standard Arduino pin headers
