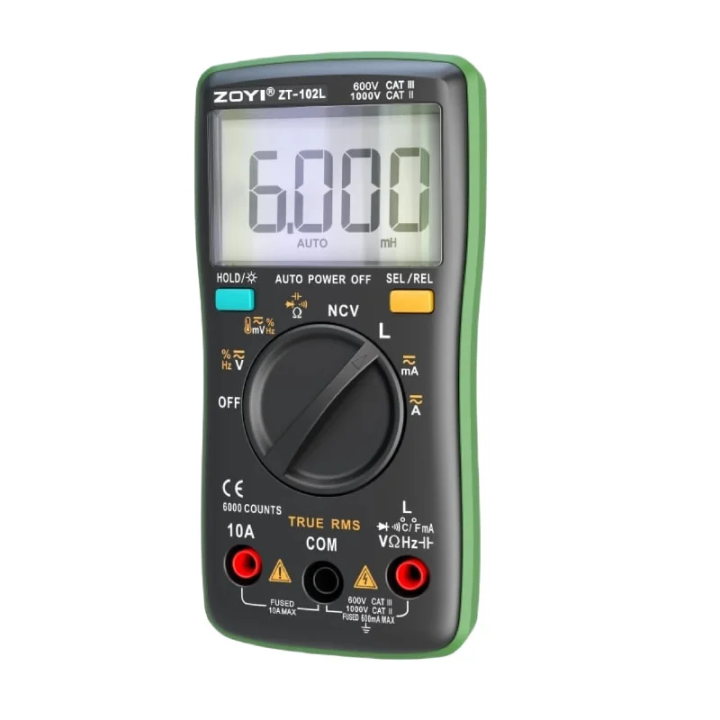

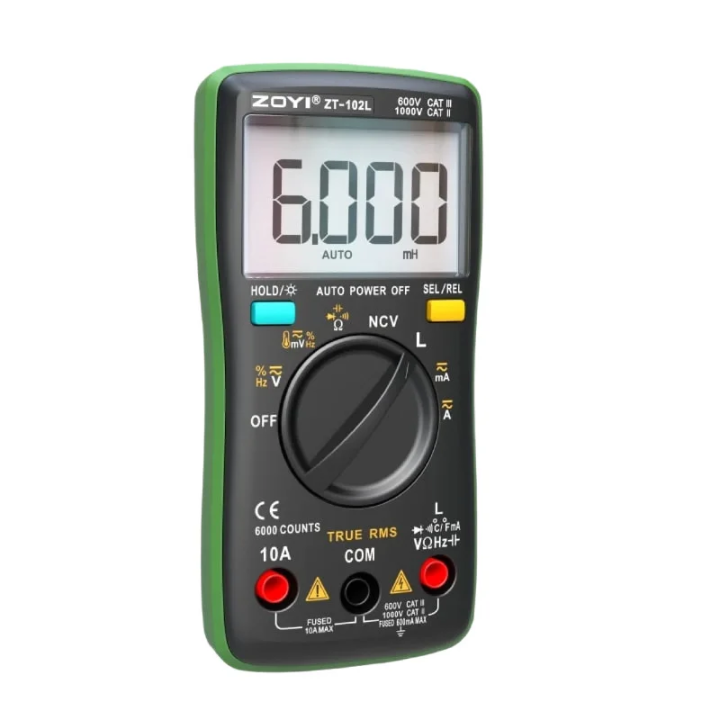

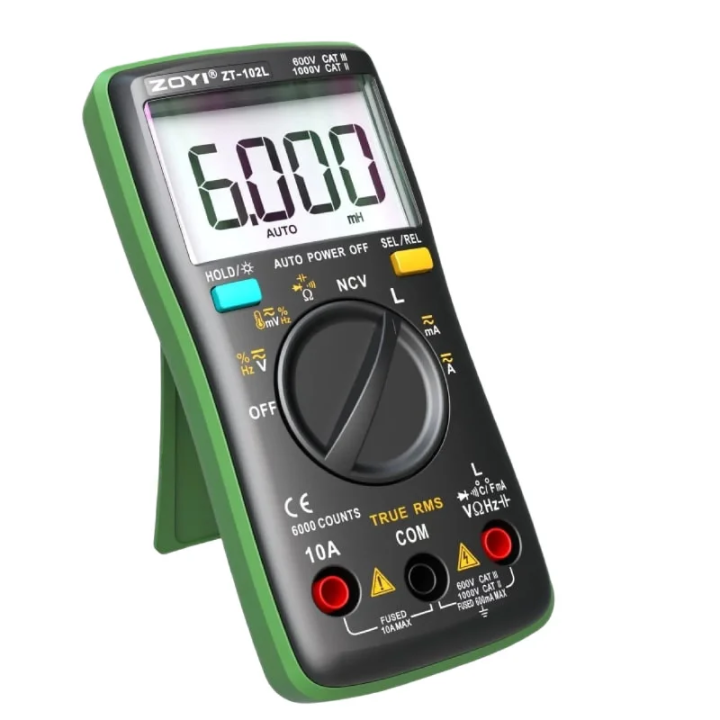

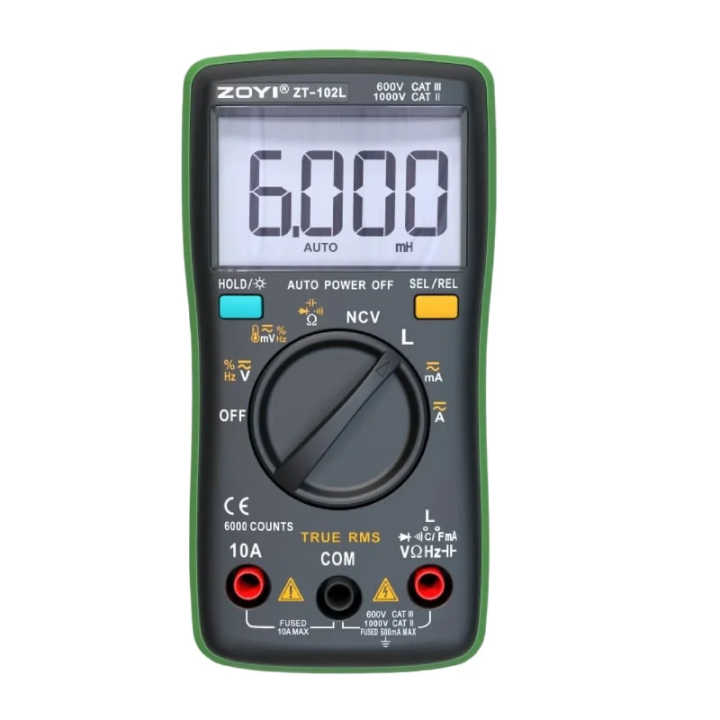

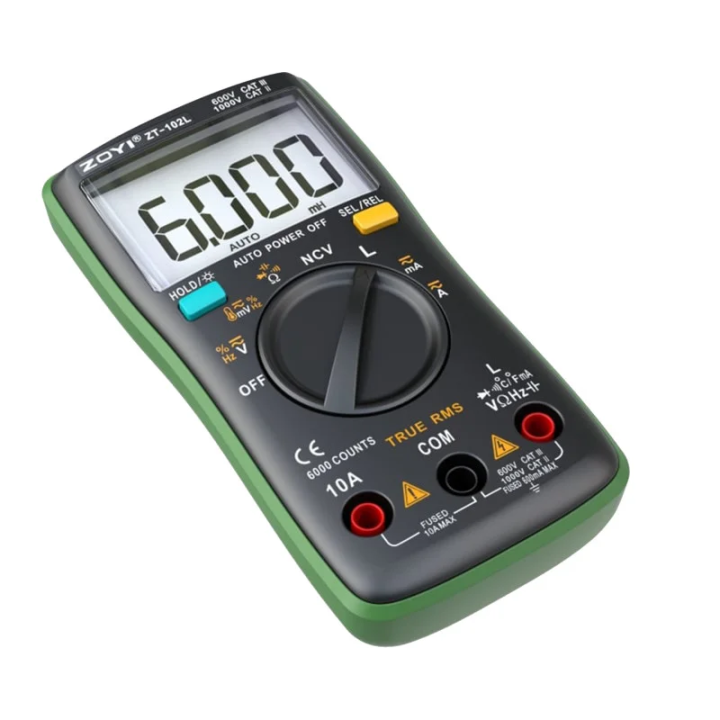

ZOYI ZT-102L Digital Multimeter Auto Range (Inductance Measurement)

Overview:

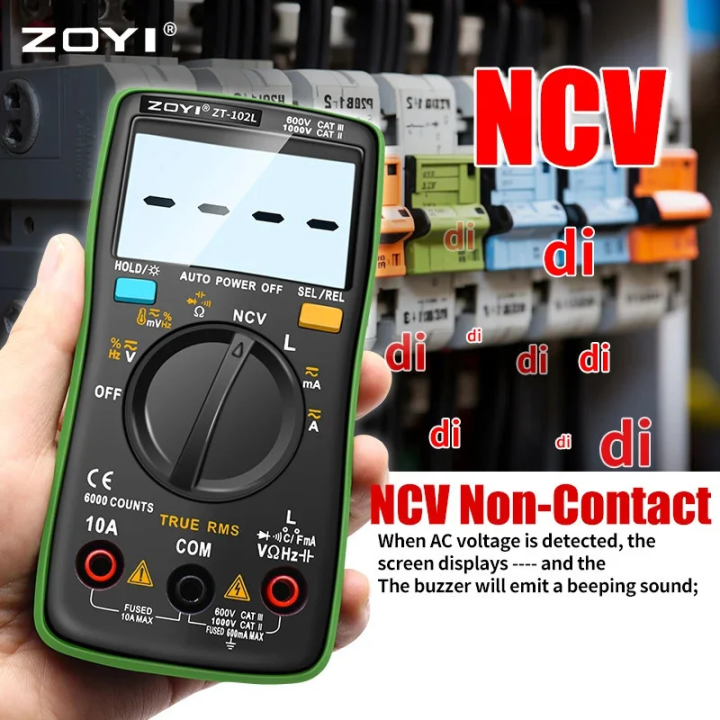

The ZOYI ZT-102L Digital Multimeter is a versatile auto-range measuring tool designed for accurate electrical testing. It supports a wide range of measurements including voltage, current, resistance, capacitance, frequency, temperature, and inductance, making it a reliable choice for technicians, students, and electronics enthusiasts. The large 6000-count display, True RMS measurement, and NCV function ensure safe and precise operation.

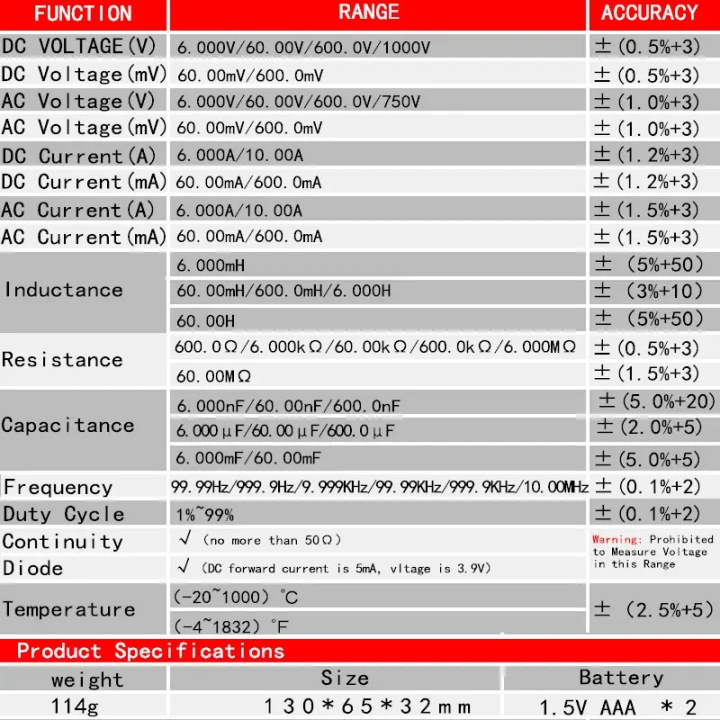

Specifications:

• Model: ZOYI ZT-102L

• Display: 6000 Counts LCD

• Measurement Type: Auto Range

• DC Voltage: 6V / 60V / 600V / 1000V

• AC Voltage: 6V / 60V / 600V / 750V

• DC Current: Up to 10A

• AC Current: Up to 10A

• Resistance: Up to 60MΩ

• Capacitance: Up to 60mF

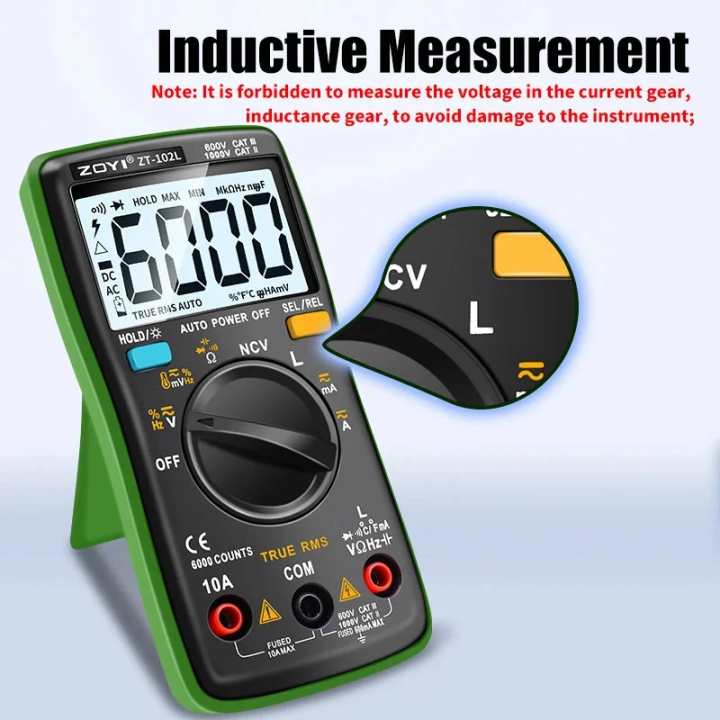

• Inductance (L): Up to 60H

• Frequency: Up to 10MHz

• Duty Cycle: 1% – 99%

• Temperature: −20°C to 1000°C

• Functions: True RMS, NCV, Diode Test, Continuity, Data Hold, Auto Power Off

• Safety Rating: CAT III 600V / CAT II 1000V

• Power Supply: 2 × AAA 1.5V batteries

• Size: 130 × 65 × 32 m
