10-Segment Red LED Bar Graph

JOD0.50
No tax

Red LED bar with 10 useful display segments for multiple display.They are handy and widely used boat for finished products and prototyping.

Description

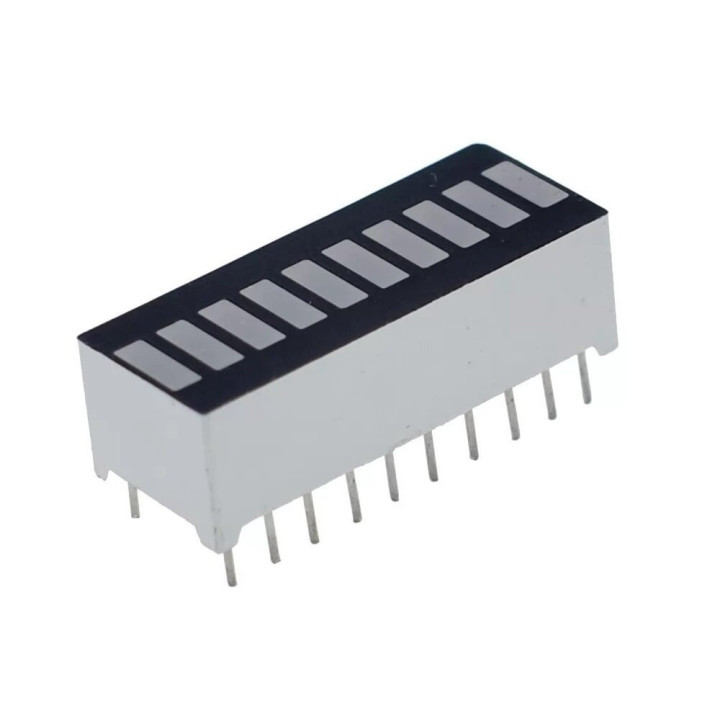

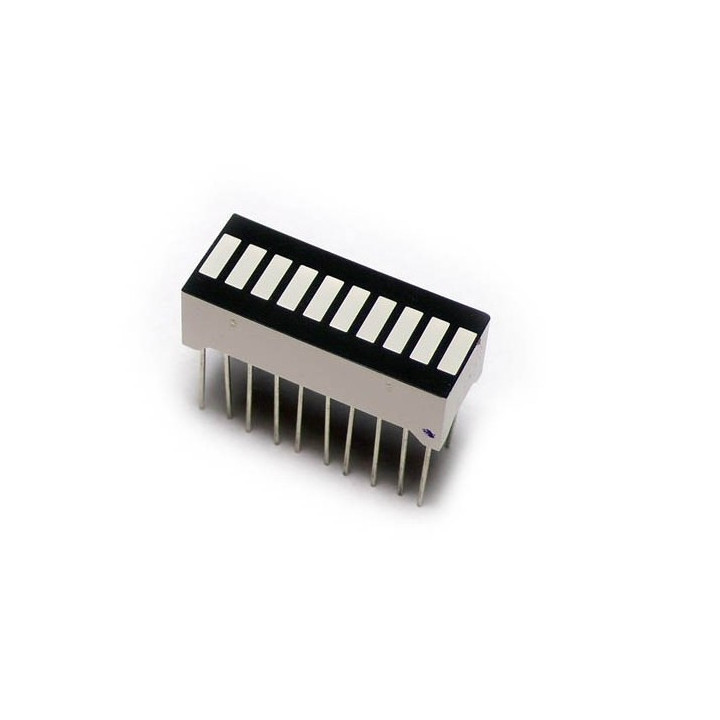

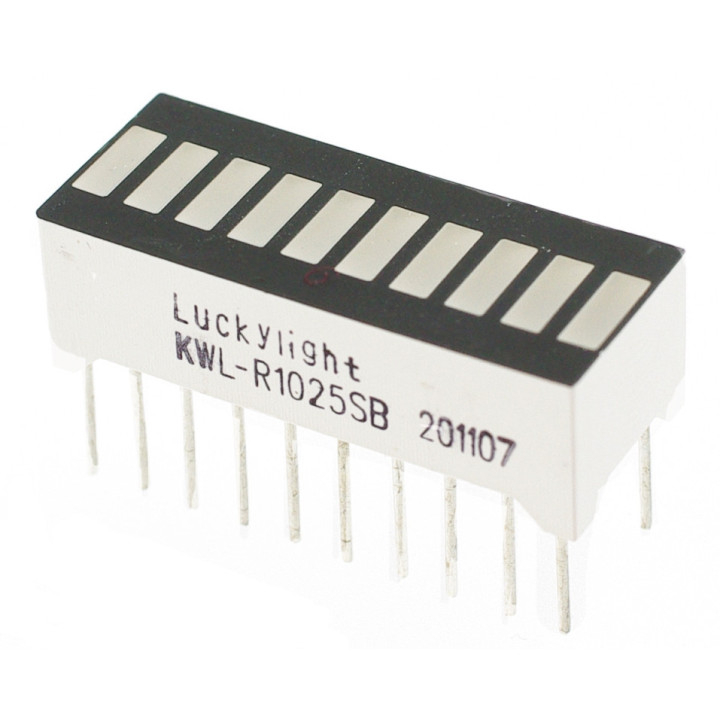

Multipurpose 10 segment  red LED bar graph. They are handy and widely used bot for finished products and prototyping. Basically, 10 individual red LEDs are mounted together to form this product, where each LED has a separate cathode and anode connection.


Technical Characteristics

  • 10 led's with separate anodes / cathodes
  • The required voltage: 2.0 V - 2.2 V
  • Led flow: 20 mA
  • Functional temperature: -25oC - +85oC
  • Red color

Dimensions: 25.4 mm x 10.1 mm

The distance between pins: 2.54 mm and 7.62 mm

The anodes of the leds are on the side that has a chamfer in the corner and the cathodes on the other side.

The LED bar is useful to indicate digital states (for example: a device on / off) or to indicate the intensity of a signal by lighting one or more leds.

Pins distances are standard and can also be used on prototyping breadboard.


Applications

  • Audio equipments
  • Instrument panels
  • Digital readout display
  • Signal strength display
  • Power status display
  • Art display
