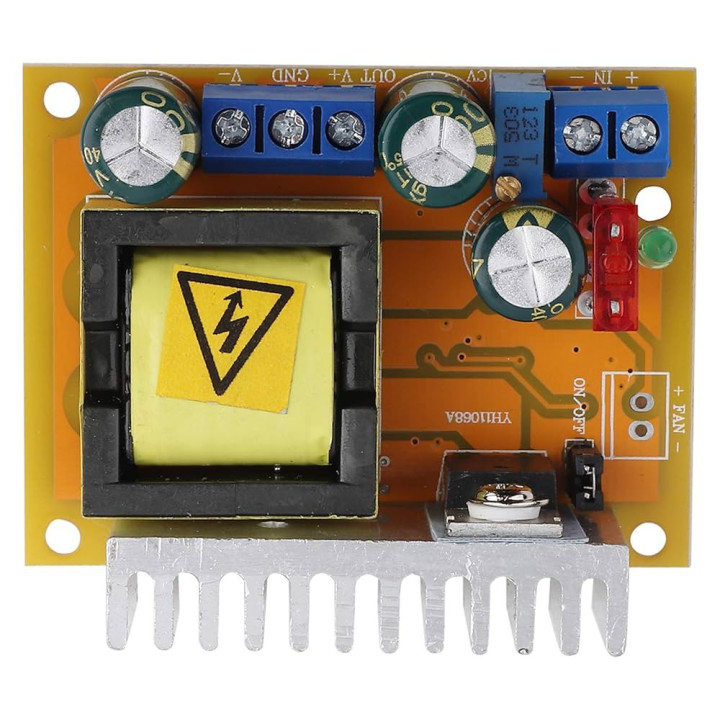

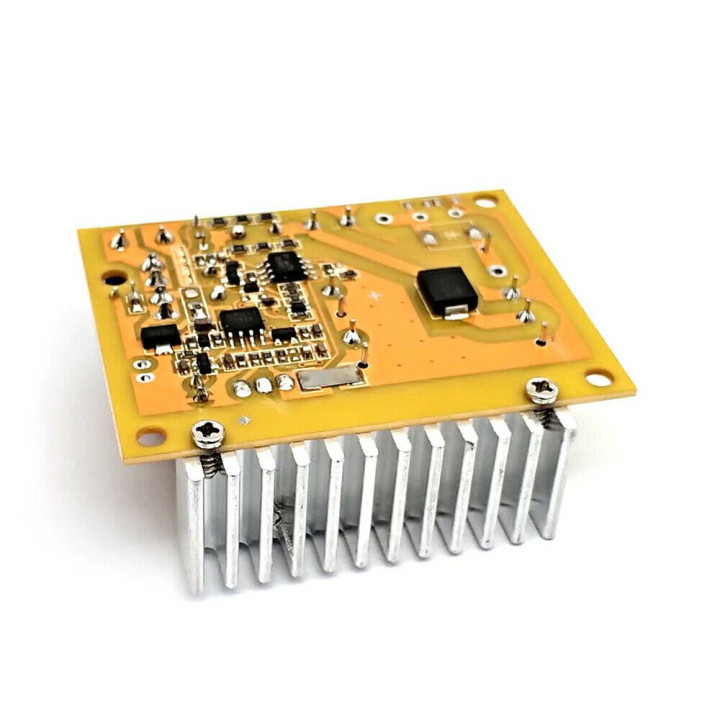

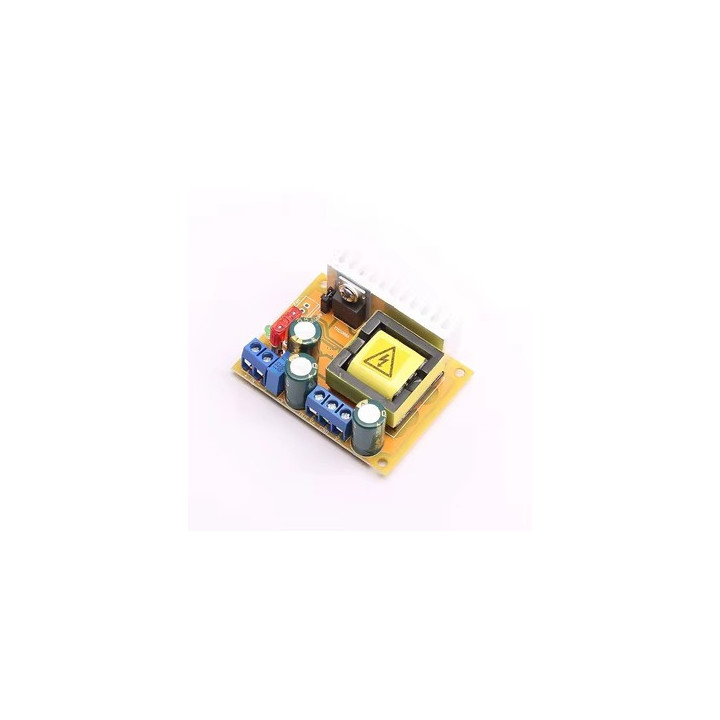

DC-DC Boost ZVS Module (±45V – 390V)

Overview

This is a power supply module which is very useful in obtaining higher voltages from the lower voltage at a maximum current of 5 A.

This is a very efficient module with an operating frequency of 75 kHz. It is suitable for your projects that require high voltage supply.

Specifications

• Input Voltage: 10 V to 32 V
• Maximum Input Current: 5 A
• Output Voltage: 45 V to 390 V
• Maximum Output Current: 0.2 A
• Maximum Output Power: 40 W
• Operating Frequency: 75 KHz
• Conversion Efficiency: 88%
• Module Size: 60 mm x 50 mm x 22 mm
