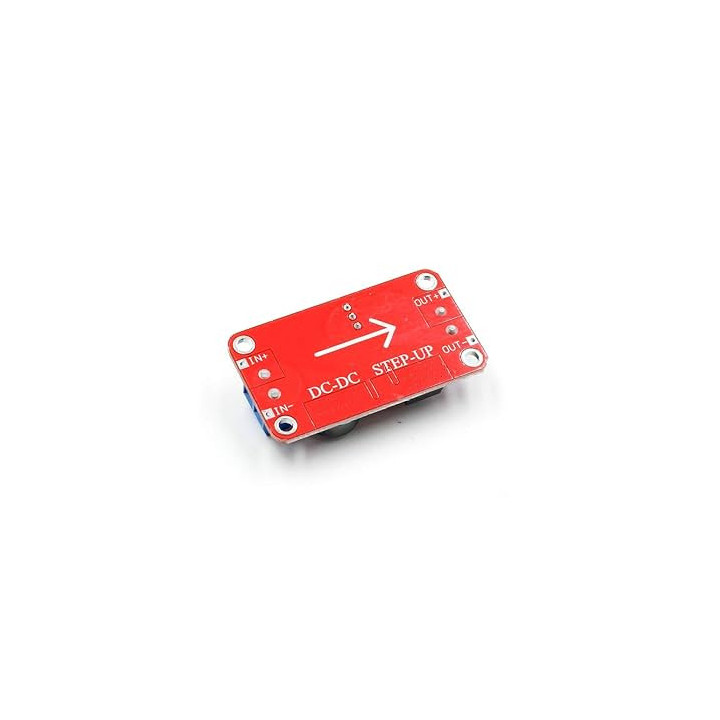

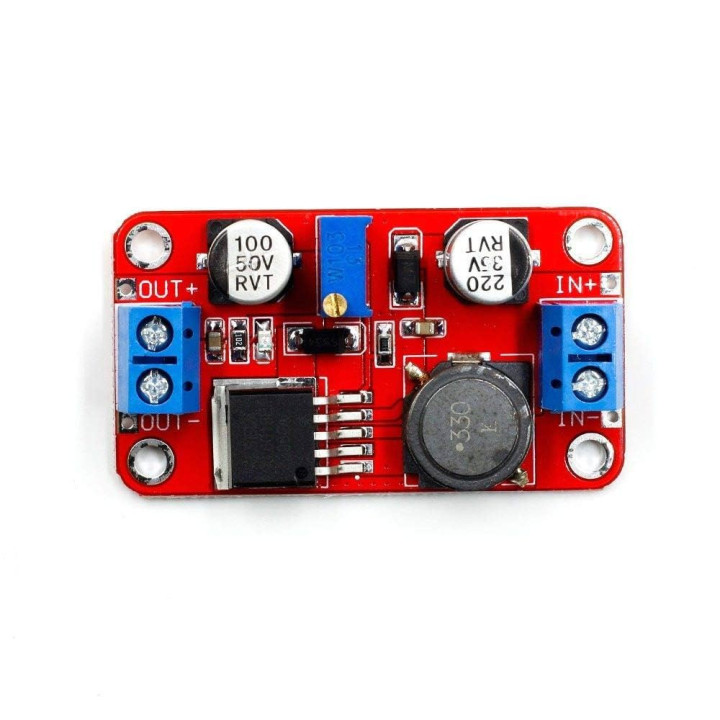

XL6019 5A DC-DC Step-Up Module

Overview

The XL6019 5A DC-DC Step Up Module is a robust and versatile boost converter module designed to elevate input voltages to higher output voltages with high efficiency and stability. Powered by the XL6019 switching regulator, this module supports a wide input range and is capable of delivering up to 5 A (peak) output, making it ideal for applications requiring flexible voltage sources.

Key Features & Benefits

• Wide Input Voltage: Accepts inputs from ~3 V to 35 V.

• Adjustable Output: Output voltage can be tuned — typical modules support 5 V to 40 V (or similar) depending on configuration.

• High Current Capability: Supports up to 5 A in peak conditions (sustained current may be lower depending on voltage and thermal conditions).

• Efficient Switching: Operates at ~180 kHz switching frequency for compactness and efficiency.

• Reverse Polarity Protection: Many modules include protection to prevent damage if input polarity is reversed.

• Compact & Versatile: Small footprint allows embedding in projects, power banks, battery boosters, and prototyping setups.

Typical Applications

• Boosting voltage from battery packs (e.g. 3.7 V Li-ion) to higher voltages

• Power supplies for custom electronics circuits

• Driving high-voltage circuits from lower-voltage sources

• Portable devices requiring adjustable voltage

• Hobbyist, robotics, and DIY electronics projects

Suggested Specifications

• Input Voltage: ~3 V to 35 V DC

• Output Voltage: ~5 V to 40 V (adjustable)

• Output Current: Up to 5 A peak (continuous rating depends on output voltage & cooling)

• Switching Frequency: ~180 kHz

• Efficiency: High (varies by conditions) — often >80 % in optimal range

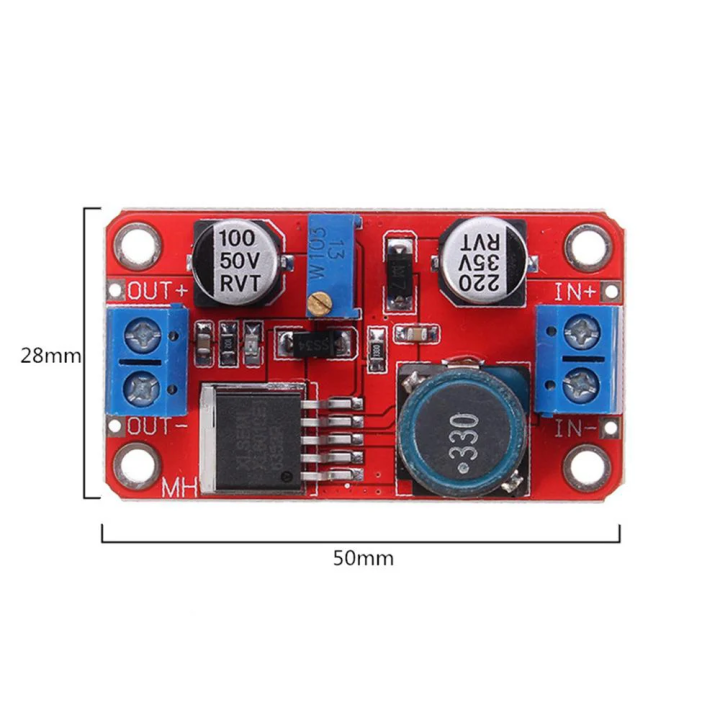

• Dimensions & Form Factor: (fill in your module’s size)

• Protections: Overcurrent, reverse polarity (if implemented)
