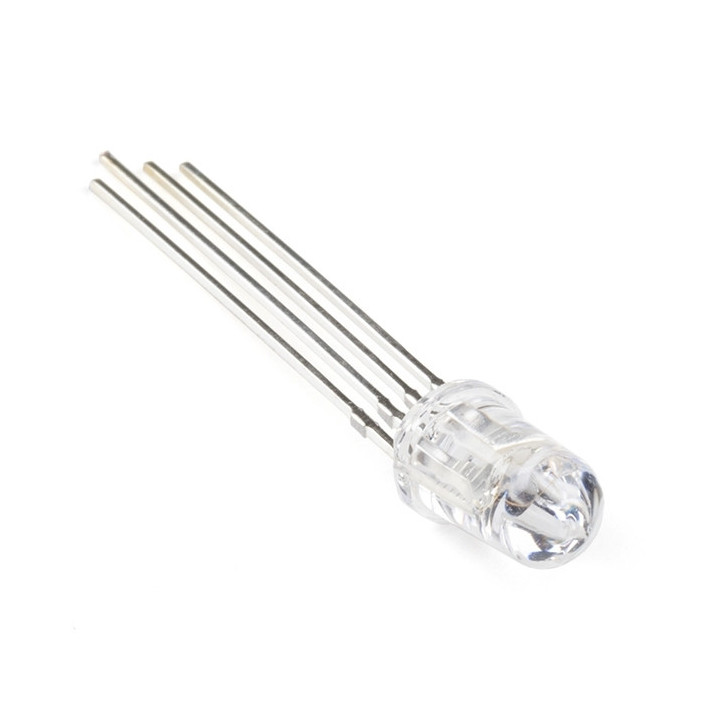

RGB LED Common Cathode

JOD0.15
No tax

Common cathode RGB LED for multi-color lighting effects. Ideal for Arduino, Raspberry Pi, and DIY electronics projects.

Overview:

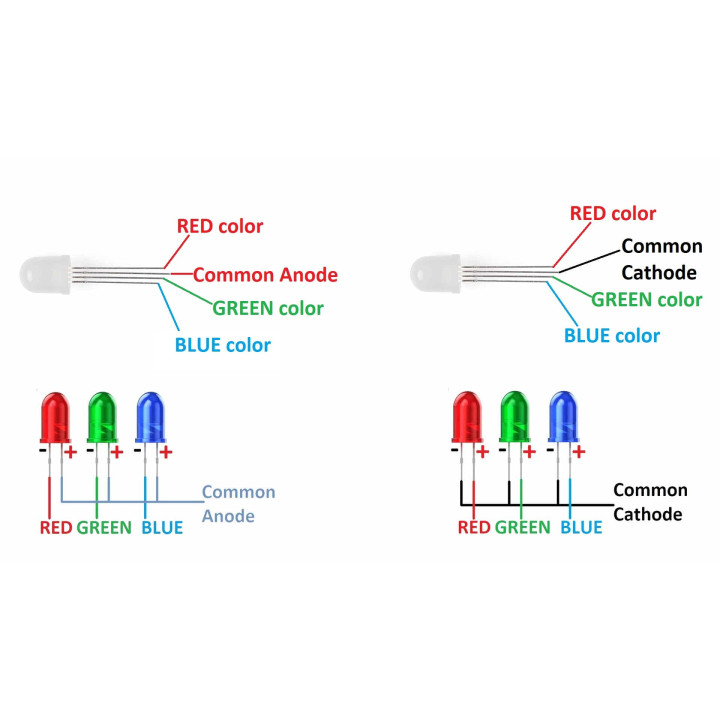

The RGB LED Common Cathode allows you to create a wide range of colors by combining red, green, and blue light in a single LED. In a common cathode configuration, all three LED cathodes are connected together to ground, while each anode is controlled individually. This type of LED is perfect for Arduino, Raspberry Pi, and other microcontroller projects, offering flexibility in creating color-changing displays, indicators, and decorative lighting.

Specifications:

  • Type: RGB LED (Common Cathode)

  • LED Colors: Red, Green, Blue

  • Forward Voltage:

    • Red: ~2.0V

    • Green: ~3.0V

    • Blue: ~3.0V

  • Max Forward Current: 20mA per color

  • Lens Size: 5mm (typical)

  • Pin Configuration: 4-pin (1 common cathode + 3 anodes)

  • Applications: Color indicators, decorative lighting, Arduino/Raspberry Pi projects, DIY electronics
