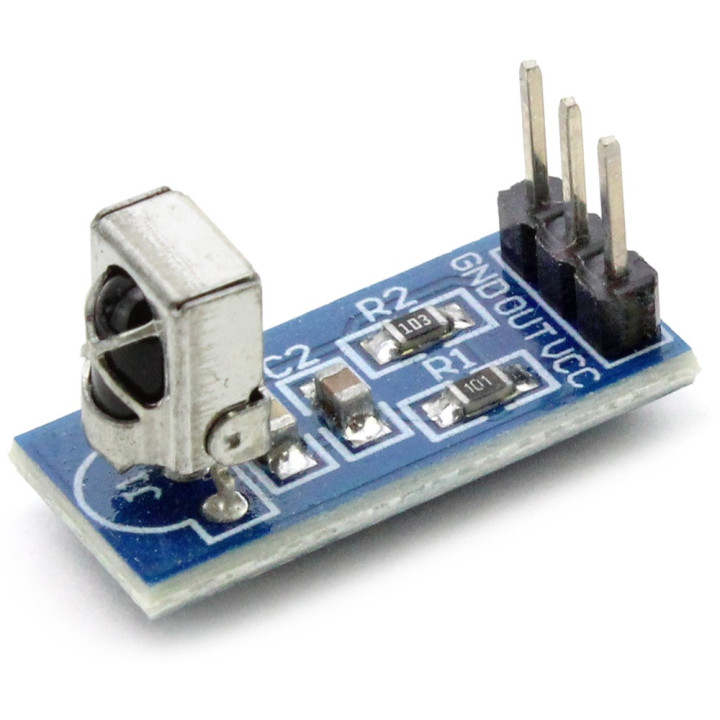

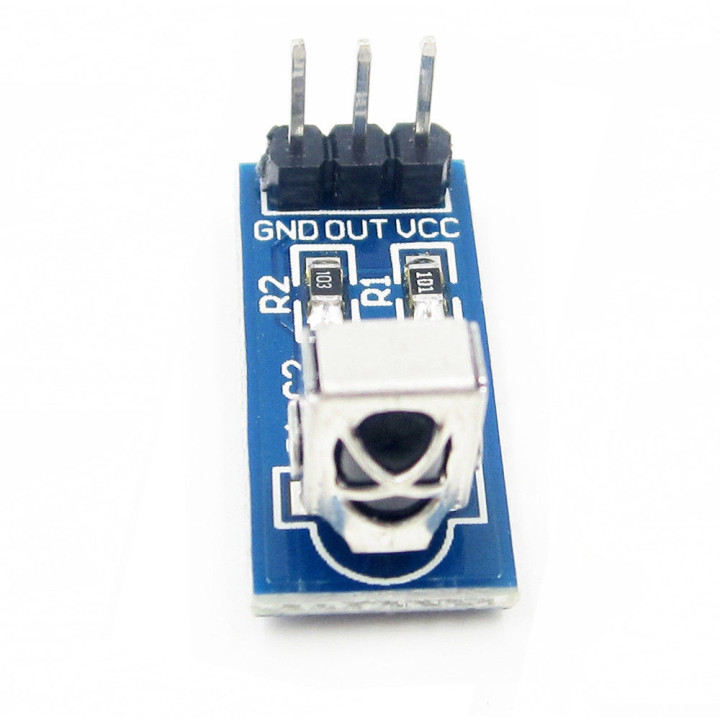

Infrared Remote Receiver Module

Overview

This module is based on VS1838B IR receiver. It is suitable for projects which require sending less data remotely, such as to automated closing and opening a window or to changing light intensity.

This module can receive data from most remote controls, which works at a frequency of 38 kHz.

Specifications

• Based on the IR receiver VS1838B
• Voltage: 3 V to 5 V
• Current consumption: max 1.5 mA
• Reception distance: 17 m, the radiation perpendicular to the receiver
• Working frequency: 38 kHz
• Wavelength: 940 nm
• The pulses duration on high/low between 400 and 800 us
• RC integrated
• TTL and CMOS compatible level
• Dimensions: 22 x 9 mm
